1） This one belongs to the High-end series,it can be compared with the imported integrating spheres.The sphere was made of aluminum alloy through spinning.On the outer surface it is the enamel paint.So the whole sphere looks very pretty and the weight of it is very small.

Compared with the iron one,there is a huge upgrade on the design as well as on the details.

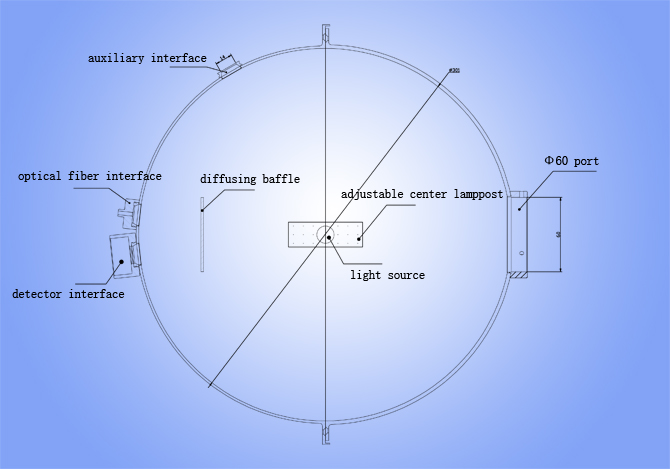

2） The diameter of it is 300mm.On one side the port is Φ60mm.On the other side there are four ports whose diameter is 14mm.The optical fiber or the optical detector can be installed on these ports.You can find the details in the following picture：

3）  Selection of parts

     To meet the different demands of our customers,we provide multiple parts like adjustable center lamppost,different coatings and so on.





Following are the same series which made according to the demands from the customers.

light powder coating

dark powder coating,rotatable

light powder coating,no flange
